Ideal for

  • Larger single phase domestic boards
  • Higher circuit count consumer unit upgrades
  • TT system layouts using outgoing RCBOs
  • Installations needing built in Type 2 SPD
  • Jobs needing customer selected RCBO ratings

Works well with

  • Hager ADA 6A to 32A Type A RCBOs
  • Hager VA10MT cable clamp for meter tails
  • Hager VM02CE cable protector plate
  • Hager VM04CE meter tail entry cable protector plate
  • Hager VAP00 label pack

What the product is

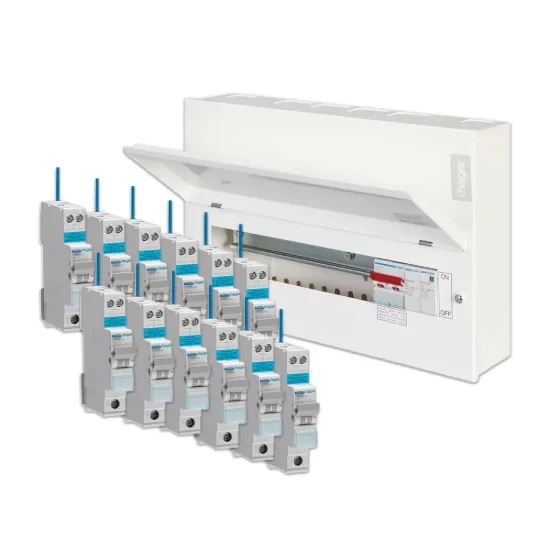

Hager Design 10 18 way consumer unit bundle with Type 2 SPD and 12 selectable RCBOs is built around the Hager VML118SPDRK consumer unit and twelve customer selected Hager ADA series RCBOs. The board is the round knockout Design 10 version with a 100A switch disconnector incomer and Type 2 SPD. The selectable outgoing protection comes from the Hager ADA family, covering ADA306G 6A, ADA310G 10A, ADA316G 16A, ADA320G 20A, ADA325G 25A and ADA332G 32A. On the website this works as a configurable larger capacity bundle where the enclosure and RCBO family stay fixed but the outgoing rating mix is chosen by the customer.

That structure is important to keep the page accurate. Hager verifies the board reference and the ADA RCBO family references. Your site bundle defines the included RCBO quantity at twelve. The final customer order is therefore a fixed Hager 18 way SPD board plus twelve RCBOs selected from the stated Hager ADA options, not one factory preset circuit schedule repeated for every purchase.

Verified bundle components

  • Consumer unit reference: Hager VML118SPDRK
  • Board family: Design 10 consumer unit
  • Board format: 18 way, surface mounted, round knockout, one row, one rail
  • Incomer: 100A switch disconnector
  • SPD: Type 2 SPD reference in official Hager board listing
  • Board dimensions: 98.2 x 476 x 100 mm
  • Board material and finish: steel, pure white RAL 9010
  • Board protection ratings: IP2XC and IK05
  • Board use context: indoor use only, single accessible phase, no RCCBs in enclosure
  • Included RCBO quantity in this bundle: 12
  • Selectable RCBO references: ADA306G | ADA310G | ADA316G | ADA320G | ADA325G | ADA332G
  • RCBO family characteristics: 1P, 6kA, B curve, 30mA, Type A, reduced height, compact single module

Why the 18 way bundle variant matters

The main buying reason to choose this version is capacity. VML118SPDRK is the widest and highest capacity single row board of the three bundle sizes you asked for. At 476 mm wide it is materially larger than the 8 way and 12 way options, which gives the installer more room for a higher circuit count while staying in a single row Design 10 format. That matters on jobs where the circuit schedule has outgrown a mid size enclosure but a dual row board is not the intended route.

The twelve selectable RCBO positions make that extra width commercially useful. A larger board only adds value if the bundle also supports a larger number of outgoing protected circuits. Here the product page can state that clearly. The enclosure size increases. The included RCBO quantity increases. The customer still chooses the exact Hager ADA ratings needed for the outgoing ways.

Board details that matter in practice

Hager identifies VML118SPDRK as a Design 10 surface mounted steel consumer unit with 18 ways, one row and one rail. The official datasheet confirms indoor only suitability, IP2XC ingress protection, IK05 impact resistance and a 100A rated current. Hager's Design 10 catalogue also ties the round knockout SPD references to BS EN 61439-3 including Annex ZB and confirms that SPD ending references include Type 2 SPD. That gives the product page a clear technical basis for describing the board as a larger single row Hager consumer unit rather than a generic enclosure.

Hager also places these switch disconnector SPD boards in the context of TT systems when RCBOs are used on outgoing circuits. Design 10 literature identifies VM04CE as the standard meter tail cable entry plate and lists accessories including VA10MT, VM02CE and VAP00. For larger board builds that accessory context matters, because the installation often involves more populated outgoing ways and a more deliberate enclosure finish.

RCBO selection and buying logic

The outgoing protection part of the bundle remains inside the Hager ADA reduced height RCBO family. Hager identifies ADA306G to ADA332G as 1P 6kA B curve 30mA Type A RCBOs covering final circuits from 6A to 32A. That lets the page stay clear and exact about what the customer is choosing. The bundle is not open ended. It is limited to one verified Hager RCBO family and to the stated rating options within that family.

For the buyer, that creates a practical route to specification. The board size is chosen because the project needs 18 way capacity. The RCBO quantity is fixed at twelve. The final rating mix is then selected from the stated Hager ADA references to suit the outgoing circuits. That is a much clearer buying path than separate standalone product pages for every possible board and RCBO combination.

Who this exact bundle suits

This bundle suits larger single phase domestic boards, refurbishment projects with higher circuit counts, extensions and property upgrades where a wider single row enclosure is preferred to a dual row format. It is also a strong fit where the installer wants customer selected Hager ADA RCBO ratings together with integrated Type 2 SPD and a defined Hager Design 10 board platform.

Why buy this exact variant

Choose this 18 way Hager bundle when the job needs the largest single row Design 10 SPD board in this three product bundle set together with twelve customer selected Hager ADA RCBOs. The value in this exact version is the additional enclosure width and outgoing capacity, combined with a fully defined Hager board and RCBO family. It is the right option where the schedule needs more room than the 8 way or 12 way bundles can provide but you still want to stay within a single row consumer unit format.
