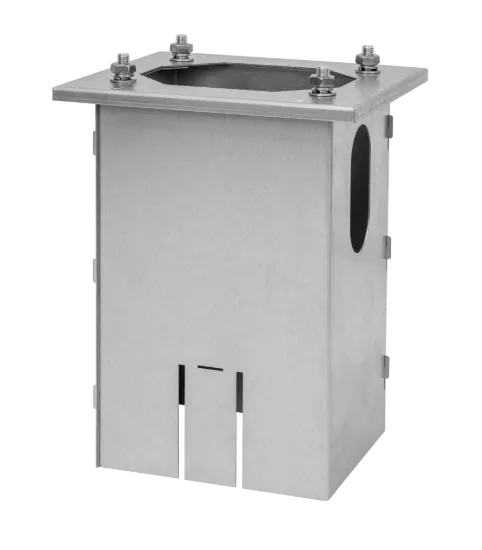

The Rolec Hex/SecuriCharge Ground Mounting Base is a ground mounting accessory for Rolec commercial EV charging layouts.

GMHP0010 is listed by Rolec as the ground mounting base for the Hex pedestal, and the supplied product set identifies the same SKU for Hex/SecuriCharge post use. It is intended for installations where the chargepoint support needs to be planned with the ground conditions rather than treated as an afterthought. The accessory is most relevant to commercial car parks, workplace charging areas, residential developments and public locations where a Hex pedestal or SecuriCharge post-mounted arrangement is being positioned in open parking. Because those charger ranges can serve more than one bay, the base position should be coordinated with bay spacing, cable movement and vehicle approach.

• Rolec product code GMHP0010
• Ground mounting base listed for the Hex pedestal
• Specified in the supplied product set for Hex/SecuriCharge post use
• Accessory for commercial Rolec EV charging installations
• Supports pedestal or post setting-out during groundworks
• Relevant to two-bay, four-bay and SecuriCharge post layouts
• Supported by Rolec accessory warranty terms

What does GMHP0010 fit?

Rolec lists GMHP0010 as the ground mounting base for the Hex pedestal. The Hex range is a multi-outlet pedestal designed for public car parks, shopping centres, development sites and leisure facilities, with two or four Type 2 socket options and up to 7.4kW or 22kW charging outputs. A ground base for this product family should be treated as part of a multi-bay layout because the pedestal may serve vehicles on more than one side.

The supplied row also identifies the base for SecuriCharge post use. SecuriCharge is a commercial wall or post-mounted range, and its mounting post accessories are separate from the chargepoint body. Where SecuriCharge is being specified, confirm the final post and base combination against the project parts list before installation. That check matters because post-mounted and pedestal-mounted products place different loads and cable routes into the ground.

Why base position matters on Hex

A Hex pedestal can serve two or four vehicles, depending on the selected charger variant. That makes the mounting position more important than it is on a single-bay charger. The base should be located so each socket can be reached without awkward cable crossing, and so drivers can access the charger interface without standing in a traffic path. Cable locking, socket access, LED down lighting and maintenance clearance should all be reviewed before the base is fixed.

In a central bay layout, moving the base even a small distance can alter how every connected cable sits across the parking area. Installers should coordinate the base with bay line marking, duct entry, kerb position and any protective barrier. For sites where the charger may be exposed to reversing vehicles, the mounting base should be planned with a root mount EV chargepoint protection barrier or equivalent protection from the start.

Using it with SecuriCharge posts

SecuriCharge is used for workplaces, long-stay parking, residential developments and commercial locations. Where the charger is not wall mounted, a post arrangement may be required to place the unit at the correct bay position. The supplied product data identifies GMHP0010 for Hex/SecuriCharge post use, making it relevant to projects where a SecuriCharge mounting post is being specified with a ground base.

The post and base should be planned before the charger is ordered as a complete site package. Confirm whether the project needs one charger or two chargers on the SecuriCharge post, then select the appropriate post and ground base. Allow for door access, cable connection, user approach and barrier clearance. A post-mounted chargepoint still needs enough working room for future inspection, maintenance and replacement.

Choosing the right Rolec mounting base

Rolec charging ranges use several mounting base accessories, and the codes should not be mixed without checking compatibility. GMHP0010 belongs with the Hex pedestal accessory list and is supplied here for Hex/SecuriCharge post use. GMCP0010 is used with BasicCharge, GMQR0011 is used with Quantum, GMUC4080 is used with UltraCharge 40/80 pedestal installations and GMTP0010 is used with the Tap & Charge premium pedestal.

For a Hex installation, review the Rolec Hex smart EV charging pedestal before finalising the base. For a SecuriCharge installation, pair the base with the relevant Rolec SecuriCharge smart EV charger and mounting post requirement. Selecting the charger family first reduces the risk of ordering the wrong ground accessory.

Hex/SecuriCharge base questions
