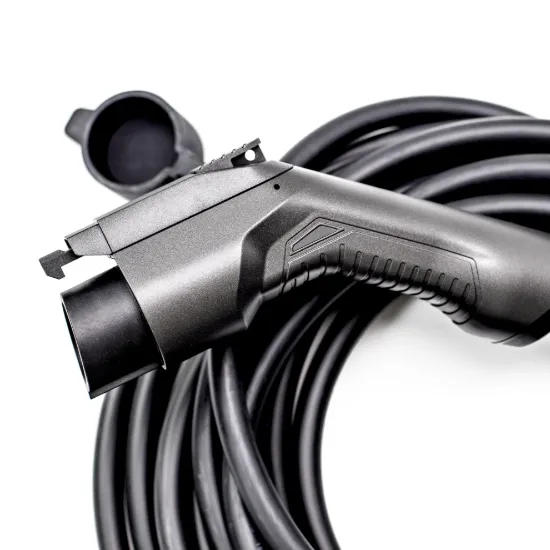

The Rolec Type 2 to Type 1 EV Charging Cable is a 5m 16A Mode 3 cable for Type 1 vehicles using Type 2 chargepoints.

EVPP0140 is listed in the Rolec Mode 3 EV Charging Cables data sheet as a 5m, 16A, 3.6kW Type 1 J1772 to Type 2 IEC 62196 charging cable. It is used where the chargepoint provides a Type 2 socket but the vehicle has a Type 1 inlet. That makes it relevant to older EVs and plug-in hybrids with Type 1 vehicle connections, especially where the site uses a socketed Rolec or other Type 2 AC chargepoint. The cable is a plug-to-plug Mode 3 lead, so it is not a tethered charger cable and it is not a portable 3-pin charger. Rolec lists IP54 rating, 10,000 mating cycles, cable strain relief and impact resistant run-over proof construction for the Mode 3 cable range. For related cable routes, browse EV cabling.

• Rolec product code EVPP0140
• 5m cable length
• 16A current rating
• 3.6kW charging output rating
• Type 1 J1772 to Type 2 IEC 62196 connection
• Mode 3 plug-to-plug charging cable
• IP54 rated cable range
• 10,000 mating cycles listed for the Mode 3 cable range
• Cable strain relief feature
• Impact resistant run-over proof construction listed for the range

Which vehicle inlet does it suit?

This cable is for vehicles with a Type 1 J1772 inlet. The chargepoint end is Type 2 IEC 62196, so it is used with socketed Type 2 AC chargepoints. It is not the right cable for a vehicle with a Type 2 inlet, because those vehicles need a Type 2 to Type 2 lead instead.

The buying check is simple: confirm the vehicle inlet first, then confirm the chargepoint socket. If the vehicle is Type 1 and the charger is Type 2 socketed, this cable family is the relevant route. If both ends are Type 2, use the Type 2 to Type 2 cable range.

Why choose the 5m 16A version?

The 5m 16A cable suits parking layouts where the charger and vehicle inlet sit close enough for a shorter lead. It is also the lower-rated option in the Type 2 to Type 1 cable set. That makes it suitable where the vehicle or charging arrangement does not require the 32A 7.2kW variants.

EVPP0140 is the 5m 16A version. EVPP0160 is the 5m 32A version, and EVPP0163 is the 10m 32A version. Choose the 32A cable only where the vehicle and charger can use that rating. Choose the 10m cable where the extra reach is needed for the parking position.

Handling and storage at the bay

The Mode 3 cable data sheet lists cable strain relief, IP54 rating and run-over proof construction across the cable range. Those features support regular use, but they do not remove the need for sensible cable handling. The cable should be routed so it does not sit across a main walkway or vehicle path during charging.

For storage, a carry bag or holster can help keep the cable clean and easier to manage. Rolec lists an optional plug-to-plug cable carry bag in the Mode 3 cable data sheet. Where the cable is kept near a socketed charger, a Type 2 holster or cable storage accessory may also be considered.

Choosing Type 1 cable variants

EVPP0140 is the 5m, 16A, 3.6kW Type 2 to Type 1 cable. EVPP0160 keeps the 5m length but raises the current rating to 32A, with 7.2kW listed in the Rolec data sheet. EVPP0163 provides the 10m, 32A, 7.2kW Type 2 to Type 1 option.

The variant decision is based on vehicle capability and parking distance. A higher-rated or longer cable does not improve charging if the vehicle or charger cannot use the extra capacity, and longer cables are heavier to handle. For a close bay and a 16A Type 1 charging requirement, this SKU is the compact cable selection.

Type 2 to Type 1 questions
