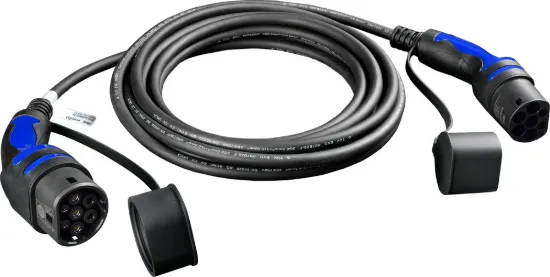

Mode 3 Type 2 Charging Cable with Extended Reach
The Sync Energy EVC22328SL-01 is an 8-meter Type 2 to Type 2 EV charging cable designed to simplify daily charging routines. Operating as a Mode 3 cable, it connects vehicles equipped with a Type 2 inlet to untethered AC charge points. This is particularly valuable for driveways where the charger is positioned at the far end of the bay, or where the parking alignment changes frequently. By providing 8 meters of length, the cable prevents strain on the vehicle's charge port and allows the lead to be routed safely around the car's perimeter.
Electrical Ratings and Charging Capacity limits
The cable is rated for single-phase AC charging up to 7.4kW at a maximum voltage of 250V. It is compatible with both 16A and 32A chargers, adjusting dynamically to the maximum current supported by the vehicle's on-board charger. This makes it a highly versatile accessory for drivers who use 3.7kW home chargers as well as 7.4kW public points. Note that this is a single-phase cable, so it will not support 11kW or 22kW three-phase charging. For properties with three-phase supplies, a three-phase cable must be specified instead.
Cable Construction and Materials Standards
To ensure long-term durability, the lead is constructed using high-quality H07BZ5-F 3x6mm² + 1x0.5mm² copper conductors. The outer sheath is made of a tough, UV-stable polyurethane compound that remains flexible even in freezing winter conditions. The copper cores are insulated to meet EN 50620 and IEC 62196-2 standards, ensuring low resistance and minimal heat buildup during continuous charging sessions. The molded connectors feature integrated strain relief to prevent the wire from fraying at the plug joints.
Comparing Charging Cable Lengths for Your Bay
Choosing the correct cable length depends on the geometry of your parking area. While a standard 5m lead is lighter and easier to wind, it can be too short if a vehicle is parked backward or if another car blocks the driveway. Opting for the 8m EVC22328SL-01 provides a useful middle ground, offering extra reach without being as heavy to store as a 10m cable. For drivers who want to avoid retrieving a cable from the boot entirely, selecting a tethered charger like the Sync Energy Wall Charger 2 with a fixed lead is a practical alternative, though it lacks the flexibility of a socketed Sync Energy Link.
Weatherproof IP Ratings and Cable Care
The cable assembly is rated IP65 against water and dust ingress when plugged into a vehicle's charging socket, ensuring safe operation during heavy rain. When disconnected, the rubber end caps should be fitted over the plugs, which provides an IP55 rating to protect the copper pins from dirt and moisture. Drivers should store the cable in a dry boot organizer or bag when not in use, and avoid leaving the connectors lying in puddles on the ground. Regularly wiping down the sheath helps prevent dirt from transferring to hands and clothes.
Specification
| Product Type | Mode 3 EV charging cable (Type 2 to Type 2) |
|---|
| Model / SKU | EVC22328SL-01 |
|---|
| Length | 8 meters |
|---|
| Charging Capacity | 7.4kW single-phase (suitable for 16A and 32A sockets) |
|---|
| Voltage Rating | 250V AC |
|---|
| Conductor Spec | H07BZ5-F 3×6mm² + 1×0.5mm² |
|---|
| Ingress Protection | IP65 connected; IP55 capped when not in use |
|---|
| Standards Met | EN 50620 and IEC 62196-2 compliance |
|---|
| Color / Finish | Black cable sheath with grey/black molded plugs |
|---|
| UV Stability | Yes, UV-stabilized polyurethane outer jacket |
|---|
| Manufacturer Warranty | 3 years |
|---|
Why Buy the EVC22328SL-01 from LAMPS
Trade buyers can order the EVC22328SL-01 cable through LAMPS for immediate collection or rapid site delivery. We carry a wide selection of charging cables, carry bags, and wall holsters to suit every residential and commercial application. Sourcing your EV accessories from LAMPS ensures you receive certified, standard-compliant gear backed by official manufacturer warranties. Call our sales representatives on 01844 393939 to confirm current stock levels, ask about trade discount tiers, or coordinate bulk orders for your client installations.
Common questions
Will this cable charge my car at public rapid chargers?
No. Public rapid chargers (DC) have tethered cables with CCS2 or CHAdeMO connectors that plug directly into your car. This Type 2 to Type 2 cable is for AC charging points up to 7.4kW, where you must supply your own cable.
Can this cable be used with three-phase 11kW or 22kW chargers?
Yes. You can plug this cable into a three-phase charger, but the charging rate will be restricted to single-phase (7.4kW maximum), as the cable does not contain the extra conductors required for three-phase power transfer.
Is this cable compatible with all electric vehicles?
This cable is compatible with all electric and plug-in hybrid vehicles that feature a standard Type 2 inlet. This covers almost all modern EVs sold in the UK and Europe, though older models with Type 1 inlets will require a different cable.
What is the cable's conductor size?
H07BZ5-F with 3 × 6mm² power conductors plus a 0.5mm² pilot conductor, rated to 250V AC.
Is the cable weatherproof when connected?
Yes. It is rated IP65 when both ends are plugged in, and IP55 when capped for storage.
Extend Your Charging Reach with LAMPS
Make charging your vehicle easier by ordering the Sync 8m Type 2 cable today through LAMPS. Sized to fit double driveways and awkward car ports, this high-quality lead provides a reliable, weatherproof connection. Contact our sales team today to check stock, discuss trade discounts, or pair your cable with a socketed home charger.
