What the SolaX X3-Pro G2 15kW is built for

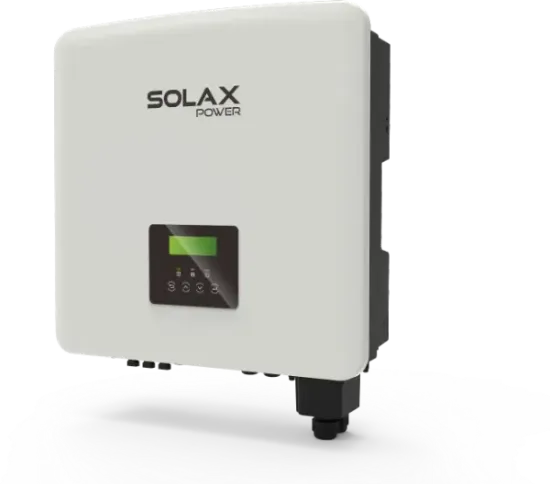

SolaX X3-Pro G2 15kW Three-Phase String Inverter is intended for very large residential solar systems on three-phase supply where the project brief goes well beyond standard domestic expectations. It is still part of a residential on-grid family, but it is aimed at homes with extensive roof space, higher electrical demand and a clear need for stronger inverter output. For properties that are large enough to justify it, the 15kW model gives a much more proportionate answer than trying to stretch a smaller inverter into an oversized role.

The key point is fit. A large residential array needs more than headline wattage. It needs sensible PV allowance, strong tracker current, serious protection features and better export-control support. The X3-Pro G2 15kW provides all of that while keeping the same family logic as the smaller models, which makes it easier to specify across projects that remain residential in character but differ greatly in scale.

Why the 15kW variant matters

The 15kW version supports up to 22.5kWp of recommended PV array power, gives 15kW rated output, 16.5kVA maximum apparent power and 22.8A rated output current. That places it firmly at the upper end of residential three-phase solar. It is the model to consider when the roof area, module count and generation ambition clearly outrun what a 12kW inverter can sensibly support, but the project still belongs in a residential three-phase category rather than a commercial one.

That matters because larger homes increasingly want more from solar. Higher daytime demand, heat pumps, EV charging and broader electrification plans all push system sizing upward. The 15kW X3-Pro G2 gives buyers a way to meet that need without sacrificing residential usability or moving to a product family that feels oversized for domestic installation practice.

Key features and practical benefits

• 15kW rated three-phase output for very large home solar systems
• Up to 22.5kWp recommended PV array power
• 150% DC oversizing and 110% AC overloading output
• Dual MPPT design for cleaner array design across two roof sections
• Up to 32A input current and 40A short-circuit current per MPP tracker
• 160 to 980V MPPT range with 200V start-up voltage
• Type II SPD on both AC and DC sides
• Built-in export power control and built-in global MPP scan
• IP66 ingress protection with optional AFCI support

Those points are useful because they help the inverter stay practical at a higher system scale. High-current MPPT inputs make the product more aligned with modern module characteristics. Dual MPPT tracking keeps layout cleaner on large domestic roofs. Export power control becomes more relevant as arrays get bigger. IP66 protection and broad environmental ratings help the inverter fit demanding domestic installation environments.

Technical details that matter in practice

Platform electrical specifications include 1100V maximum PV input voltage, 650V rated PV input voltage, 135 to 985V operating voltage range and 160 to 980V MPPT range. Start-up voltage is 200V. On the AC side, the 15kW version gives 24.2A maximum output continuous current, which helps underline that this is a serious three-phase residential inverter rather than a mid-range model stretched too far. Rated AC voltage is three-phase 230/400V and 220/380V, with rated frequency at 50/60Hz.

SolaX also specifies a broad protective set that includes anti-islanding, DC isolation protection, DC reverse-polarity protection, grid monitoring, DC injection monitoring, back-feed current monitoring, residual current detection, over-temperature protection, AC overcurrent protection and AC short-circuit protection. Certification listings include EN 50549, VDE4105, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530 and IEC/EN 62109-1 and -2. That keeps the 15kW variant technically credible for demanding residential specification work.

Monitoring, control and broader energy use

The X3-Pro G2 platform is built to work within more connected homes. Product literature highlights 24-hour monitoring through WiFi, LAN and 4G options, smart loads management for devices such as heat pumps and smart EV chargers, and built-in export power control. Those functions matter more as array size grows because the homeowner is more likely to want active visibility and deliberate load interaction rather than passive generation alone.

Optional meter support is also relevant here. On larger domestic systems, export behaviour and energy management become more important parts of the conversation. The 15kW version therefore benefits from a better monitoring and control story than a simpler three-phase inverter focused only on baseline conversion.

Installation and fitment considerations

Dimensions are 482 × 417 × 186 mm and ingress protection is IP66. Operating temperature range is -30 to 60°C and maximum operating altitude is 4000m, with humidity listed at 0 to 100% RH condensing. Communication interfaces are RS485 and DRM, with optional meter support. Night-time consumption is under 3W and topology is non-isolated. Those details help show that although the inverter output is high, the platform remains manageable from an installation and specification perspective.

The 15kW model is well suited to very large residential roofs and high-demand three-phase homes where a smaller inverter would introduce unnecessary compromise. It is also a logical choice where the solar project is being designed as part of a broader move toward electrified domestic loads.

Who this variant suits best

The X3-Pro G2 15kW suits very large three-phase homes, residential PV arrays up to 22.5kWp DC, properties with extensive roof area and homeowners who want stronger solar contribution across a broader electrical demand profile. It is especially relevant where large domestic PV is being planned alongside heat pumps, EV charging or tighter export-control requirements.

Compared with the 8kW, 10kW and 12kW models, the 15kW version is the clear choice when the system brief is materially larger. Compared with the 20kW model, it remains the more proportionate option where the roof and usage profile are very substantial but not at the extreme end of residential scale.

Final view

SolaX X3-Pro G2 15kW Three-Phase String Inverter is a highly capable residential three-phase inverter for very large domestic solar systems. With support for up to 22.5kWp of PV, dual MPPTs, 150% DC oversizing, 110% AC overloading, Type II SPD on AC and DC, export power control, built-in global MPP scan and IP66 protection, it gives upper-end residential projects a strong and well-focused inverter platform.
