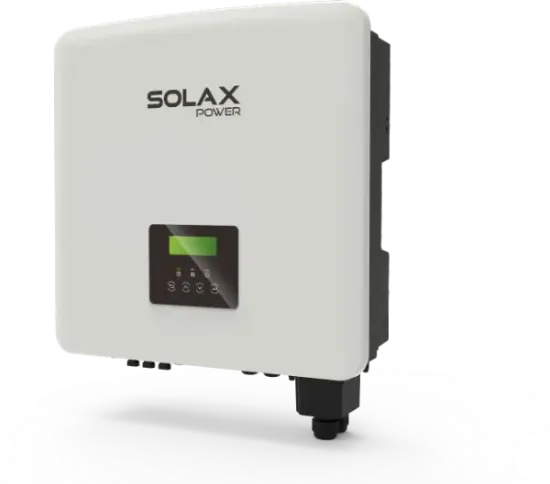

What the SolaX X3-Pro G2 20kW is built for

SolaX X3-Pro G2 20kW Three-Phase String Inverter is aimed at the upper end of residential three-phase solar, where the home, roof space and electrical demand profile are all large enough to justify a far more capable inverter than standard domestic systems require. It remains part of a residential on-grid family, but it is very clearly intended for larger properties and larger design ambitions. For the right domestic project, that is exactly what makes it useful.

The 20kW model is not about buying excess for its own sake. It is about matching the inverter properly to a genuinely large residential array. Where the roof can support a substantial number of modules, and where the household has meaningful daytime electrical demand or a wider electrification strategy, a smaller inverter can become a limiting factor. The 20kW X3-Pro G2 avoids that compromise and gives the project the scale it needs.

Why the 20kW variant matters

The headline reason to choose this version is capacity. SolaX rates it for up to 30.0kWp of recommended PV array power, 20kW rated output, 22.0kVA maximum output apparent power and 30.3A rated output current. Maximum output continuous current is 33.6A. Those figures make it the clear step-up option in the set you supplied and a strong match for the largest three-phase residential systems likely to sit comfortably within this product family.

That extra headroom matters because large domestic projects increasingly want to make fuller use of roof area and higher-power modules. A smaller inverter can still function, but it can also narrow the design unnecessarily. The 20kW X3-Pro G2 gives a more proportionate answer when the homeowner wants a very substantial solar installation that still sits within a recognisably residential specification approach.

Key features and practical benefits

• 20kW rated three-phase output for very high-output residential solar
• Up to 30.0kWp recommended PV array power
• 150% DC oversizing and 110% AC overloading output
• Dual MPPT design for cleaner array organisation across large roof areas
• Up to 32A input current and 40A short-circuit current per MPP tracker
• 160 to 980V MPPT range with 200V start-up voltage
• Type II SPD on both AC and DC sides
• Built-in export power control and built-in global MPP scan
• IP66 ingress protection with optional AFCI support

Those specifications are important because they keep the inverter practical at a scale where system design can otherwise become awkward. Dual MPPT tracking helps organise large domestic arrays cleanly. Strong input current per tracker makes the model better suited to modern module characteristics. Export power control becomes even more relevant as system size and generation potential increase.

Technical details that matter in practice

Platform electrical figures include 1100V maximum PV input voltage, 650V rated PV input voltage, 135 to 985V operating voltage range and 160 to 980V MPPT window. Start-up voltage is 200V. Rated AC voltage is three-phase 230/400V and 220/380V, with rated frequency at 50/60Hz. Power factor range is approximately 1 with 0.8 lagging to 0.8 leading, and THDi at rated power is below 3%. Those details show that the 20kW variant is built as a serious and well-specified three-phase unit rather than just a high-number extension of a smaller platform.

Protection functions listed by SolaX include anti-islanding, over and under voltage protection, DC isolation protection, DC reverse-polarity protection, grid monitoring, DC injection monitoring, back-feed current monitoring, residual current detection, over-temperature protection, AC overcurrent protection and AC short-circuit protection. Certifications listed include EN 50549, VDE4105, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530 and IEC/EN 62109-1 and -2. That is the kind of underlying specification expected of a serious upper-end residential inverter.

Monitoring, control and connected energy use

The X3-Pro G2 family is designed for connected residential energy use rather than passive generation alone. Product literature highlights 24-hour monitoring through WiFi, LAN and 4G options, plus smart loads management for applications such as heat pumps and smart EV chargers. At 20kW, those features are especially relevant because the homeowner is more likely to be managing a broader energy ecosystem rather than viewing solar as a simple bolt-on system.

Built-in export power control and optional meter support also matter here. A large residential array can make export behaviour a more important part of the design brief. The ability to manage that within the inverter platform helps make the 20kW model a more complete and more practical proposition for advanced residential projects.

Installation and fitment considerations

Dimensions are 482 × 417 × 186 mm and ingress protection is IP66. Operating temperature range is -30 to 60°C and maximum operating altitude is 4000m, with humidity listed at 0 to 100% RH condensing. Communications are RS485 and DRM, with optional meter support, and night-time power consumption is under 3W. Those details matter because large residential projects still need manageable installation characteristics. The X3-Pro G2 20kW keeps that practicality while offering far greater system headroom.

The 20kW version is most appropriate where the home really does have the roof area and electrical brief to justify it. In those cases, it is a far cleaner choice than forcing an undersized inverter into a project that is no longer modest in residential terms.

Who this variant suits best

The X3-Pro G2 20kW suits very large three-phase homes, residential PV arrays up to 30.0kWp DC, properties with extensive roof area and households aiming for a major solar contribution within a broader electrified setup. It is also relevant where heat pumps, EV charging and tighter export management all form part of the overall design logic.

Compared with the 8kW, 10kW, 12kW and 15kW models, the 20kW version is the clear choice when the project is at the largest end of residential three-phase scale. It is not just a bigger option. It is the right option when the system brief genuinely demands more output and more PV allowance.

Final view

SolaX X3-Pro G2 20kW Three-Phase String Inverter is the highest-capacity option in this batch for very large residential three-phase solar systems. With support for up to 30.0kWp of PV, dual MPPTs, 150% DC oversizing, 110% AC overloading, Type II SPD on AC and DC, export power control, built-in global MPP scan and IP66 protection, it gives upper-end domestic solar projects a strong, modern and properly scaled inverter platform.
