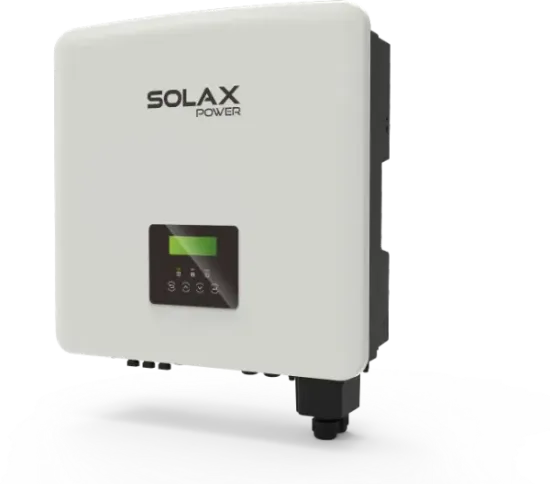

What the SolaX X3-Pro G2 12kW is for

SolaX X3-Pro G2 12kW Three-Phase String Inverter is built for larger residential properties on three-phase supply where the solar project has outgrown the smaller end of the market and needs a more capable inverter to match roof area, module count and household demand. It is still clearly a residential on-grid product, but it is aimed at the upper end of domestic specification where a system may span larger roof surfaces and where buyers expect more control, more headroom and a more confident three-phase platform.

The 12kW model sits in a very sensible middle position in the X3-Pro G2 family. It gives a notable step up from the 8kW and 10kW variants without jumping straight to the 15kW or 20kW versions. For many larger homes, that is exactly the right place to be. Buyers get a clearly more capable inverter while keeping the system appropriately sized for a residential environment.

Why the 12kW variant matters

The main reason to choose the 12kW version is balance between capacity and restraint. It supports up to 18.0kWp of recommended PV array power, gives 12kW rated output, 13.2kVA maximum output apparent power and 18.2A rated output current. Those figures place it firmly in serious residential territory. They also mean the inverter can support a substantial three-phase domestic solar system without forcing the buyer into the next output class unless the project genuinely needs it.

That matters because residential solar design is not only about buying the largest model available. The better choice is the model that fits the project. On a large home with strong daytime consumption, multiple electrical loads and plenty of roof area, the 12kW X3-Pro G2 can be the proportionate answer. It gives plenty of PV allowance and enough AC capacity to keep the design commercially sound.

Key features and practical benefits

• 12kW rated three-phase output for larger residential solar systems
• Up to 18.0kWp recommended PV array power
• 150% DC oversizing and 110% AC overloading output
• Dual MPPT design for cleaner array separation across roof sections
• Up to 32A input current and 40A short-circuit current per MPP tracker
• 160 to 980V MPPT range with 200V start-up voltage
• Type II SPD on both AC and DC sides
• Built-in export power control and built-in global MPP scan
• IP66 ingress protection with optional AFCI support

Those points matter because they make the inverter practical in real domestic use. Larger modern modules can push current higher, so 32A per MPP tracker is relevant. Dual MPPT tracking helps when the roof layout benefits from two clear tracking channels. Export power control is helpful where local requirements or system design choices call for tighter export management.

Technical details that matter on site

Core electrical specifications for the X3-Pro G2 platform include 1100V maximum PV input voltage, 650V rated PV input voltage, 135 to 985V operating voltage range and 160 to 980V MPPT range. Start-up voltage is 200V. The 12kW model then adds its own output profile, with 19.3A maximum output continuous current and support for a much larger residential array than the lower-output versions. Those values help confirm that the product is aimed at homes with serious three-phase PV ambitions rather than standard domestic add-on systems.

SolaX also lists a broad protection set including over and under voltage protection, DC isolation protection, DC reverse-polarity protection, grid monitoring, DC injection monitoring, back-feed current monitoring, residual current detection, over-temperature protection, AC overcurrent protection and AC short-circuit protection. Certifications listed include EN 50549, VDE4105, AS 4777.2, IEC 61727, IEC 62116, IEC 61683 and IEC/EN 62109-1 and -2. That gives the model solid technical grounding for higher-end residential deployment.

Monitoring, control and connected energy use

The X3-Pro G2 family is designed to sit within more connected home energy systems, not just to convert solar power in isolation. Product literature highlights 24-hour monitoring through WiFi, LAN and 4G options, along with smart loads management for devices such as heat pumps and smart EV chargers. Those features are especially useful at 12kW, where the homeowner is more likely to be actively managing a larger solar investment and broader household electrification.

Built-in export power control also matters more as system size increases. Residential projects at this level often need a clearer approach to export behaviour. Optional meter support and the broader monitoring ecosystem help make the 12kW model easier to integrate into a well-managed three-phase domestic installation.

Installation and fitment considerations

Dimensions are 482 × 417 × 186 mm, ingress protection is IP66 and the operating temperature range is -30 to 60°C. Maximum operating altitude is 4000m and relative humidity is listed at 0 to 100% RH condensing. Communication interfaces are RS485 and DRM, with optional meter support, and night-time power consumption is under 3W. Those details give installers confidence that the inverter can be placed sensibly in demanding residential environments while keeping ongoing operating overhead low.

The 12kW variant is a particularly good fit where the project has outgrown lower-output residential inverters but does not yet require the extra reach of the 15kW or 20kW models. That middle-ground role is where it proves its value.

Who this variant suits best

The X3-Pro G2 12kW is well suited to larger three-phase homes, residential PV arrays up to 18.0kWp DC, properties using modern high-output modules and households where solar will play a major part in the electrical setup. It is also attractive where heat pumps, EV charging or stronger daytime load coverage are part of the wider energy plan.

Compared with the 8kW and 10kW versions, the 12kW model provides a clearer fit for more ambitious homes. Compared with the 15kW and 20kW models, it remains more measured and often more proportionate where the system is substantial but not at the top end of residential scale.

Final view

SolaX X3-Pro G2 12kW Three-Phase String Inverter is a strong upper-mid residential three-phase inverter for homes that need real solar capacity and credible design flexibility. With support for up to 18.0kWp of PV, dual MPPTs, 150% DC oversizing, 110% AC overloading, Type II SPD on AC and DC, export power control, built-in global MPP scan and IP66 protection, it gives larger homes an inverter platform that is both capable and commercially well judged.
